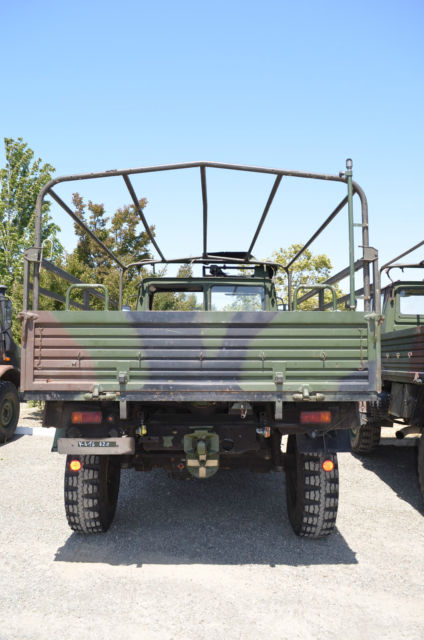

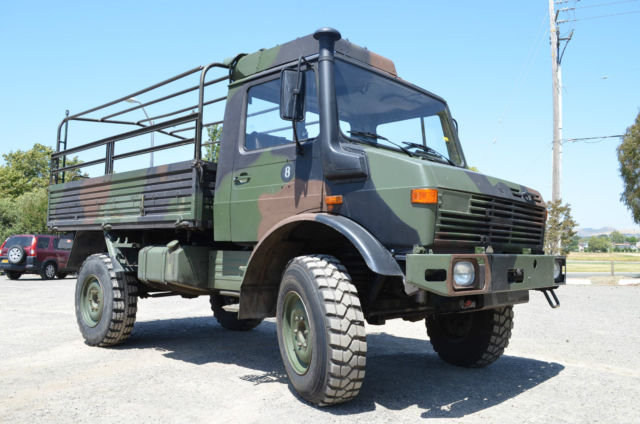

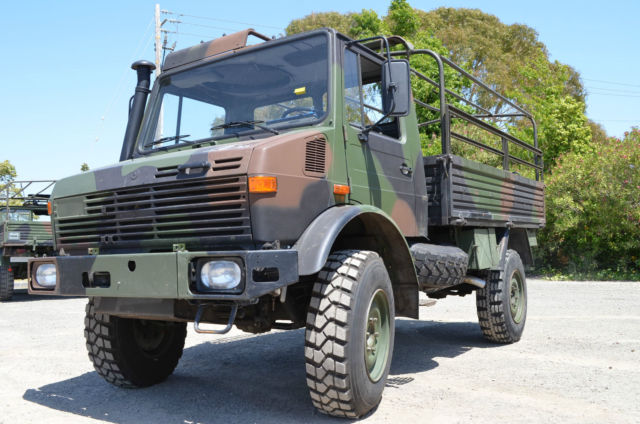

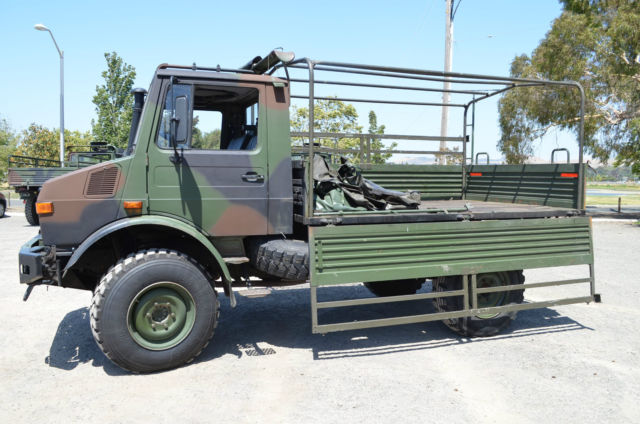

German military surplus Mercedes Benz U1300L equipped with a nonturbo 6 cylinder diesel. Cruising speed on flat terrain around 50-52 mph with stock tires. Recommend nonturbo for flat, ow altitude terrain. Have a couple of tour operators who have used this platform for hauling 16-20 passenger for zip line tours.

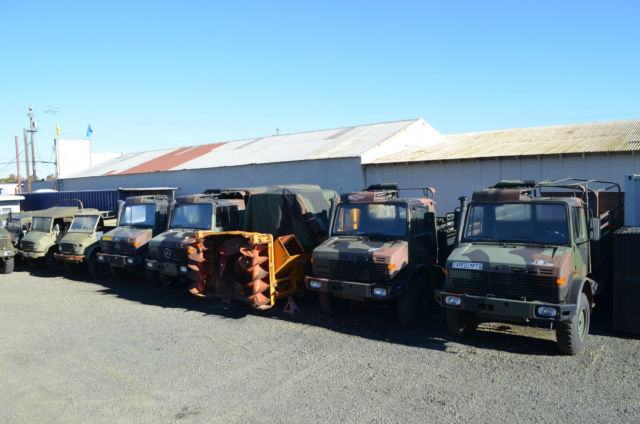

We have been importing and selling Unimogs for decades. All trucks are fully serviced and test driven prior to shipment. Shipping truck is not a problem.
There is an extensive photo file on each and every truck we sell.
Engines: OM352 (U1300): | Type | Diesel | 17.1 compression ratio | | Displacement | 5.7L (5675 cc) | 350 cu. in. | | Cylinders | 6 | | kW / HP | 96 kW | 130 hp | | Torque @ 1700 rpm | 363 Nm | 269 lb-ft | | Max RPM | 2800 |
Dimensions and Weights:| Width | 2300 mm | 90.6 inches | | Length | 5500 mm | 216.7 inches | | Height at cab | 2625 mm | 103.4 inches | | Height at highest point | 2875 mm | 113.3 inches |
Wheelbase | 3250 mm | 128 inches | | Track | 1860 mm | 73.3 inches | | Turning radius | 14.1 meters | 46 feet | | Approach angle | 46 Degrees | | Departure Angle | 51 Degrees |
Ground clearance | 440 mm | 17.5 inches | | Fording depth | 1000 mm | 3 1/2 feet |
Curb Weight | 4430 kg | 9746 lbs | | Gross Weight (GVW) | 7490 kg | 16,000 lbs | | Top Speed 12.5x20 tires | 85 kph | 53 mph | | Top Speed 14.5x20 tires | 90 kph | 56 mph | | Fuel Economy U1300 | 17.5l - 19l / 100 km | 12.5 - 14 mpg |
Axle Ratios: | Ring and Pinion | Hub reduction | Final Axle Ratio | | Standard ratio | 3.14:1 | 2.07:1 | 6.52:1 |
Transmission: 8 speed synchromesh transmission with 8 speed reverse. Internal transfer case providing rear wheel drive or 4x4. 4x4 "shift on the fly."
Ratios: | Gear | Gearbox ratio | Final Drive Gearbox+Axle | w/ Fast Axles | | 1 st | 13.01:1 | 84.8:1 | 69.1:1 | | 2 nd | 9.02:1 | 58.8:1 | 47.9:1 | | 3 rd | 5.96:1 | 38.9:1 | 31.6:1 | | 4 th | 4.38:1 | 28.6:1 | 23.3:1 | | 5 th | 2.97:1 | 19.4:1 | 15.8:1 | | 6 th | 2.06:1 | 13.4:1 | 10.9:1 | | 7 th | 1.36:1 | 8.9:1 | 7.2:1 | | 8 th | 1.00:1 | 6.52:1 | 5.31:1 | | Reverse = Forward x 1.03 |
|
|
