LIFETIME FREE UPDATE / PROGRAMMING CODING

Foxwell NT510 Vehicle For BMW From 1987-Current :

Bmw:

1 Series: E81/E82/E87/E88, F20

2 Series: F22 F23 F45 F46

3 Series: E30/E36, E46, E90/E91/E92/E93, F30/F31/F35, F34 F80

4 Series: F32/F33 F36 F82 F83

5 Series: E28, E34, E39, E60/E61, F10/F11, F07, F18

6 Series: E24, E63/E64, F12/F13, F06

7 Series: E23, E32, E38, E65/E66/E68, F01/F02/F04

8 Series: E31

I Series: I01/I12

X Series: X1_E84, X3_E83, X3_F25, X4_F26, X5_E53, X5_E70, X6_E71, X6_E72, X5_F15,X5_F85, X6_F16,X6_F86

X1_F48,

Z Series: Z1_E30, Z3_E36, Z4_E85/E86, Z8_E52, Z4_E89

MINI From 2002 to Current :

MINI_R50/R52/R53, MINI_R55/R56/R57, MINI_R58/R59, MINI_R60, MINI_F56

Rolls-Royce:

RR1, RR2, RR3, RR4, RR5

Read and clear diagnostic error codes and

resets MIL.Requests and records live sensor data. Provides live data

graphing.Merges graphs for easy and intuitive diagnosis.Displays freeze

frame data.Retrieves ECU information.

Turn off engine,transimission,abs and airbag warning lights for vast majority of BMW, MINI and Rolls-Royce vehicles.

Allow coding and programming of a

replacement control module or changing previously stored incorrect

coding. Maintenance Functions also cover CBS reset, CBS correction,

vehicle data.

Supports the most commonly required

service features like brake deactivation,Oil light service

reset,throttle body adjustment,DPF regeneration,EPB and transmission

adapt.but we could not gurrantee it's able to access each module on

different car.

Multi-language menus and code definitions for an international marketplace.

Main Functions：

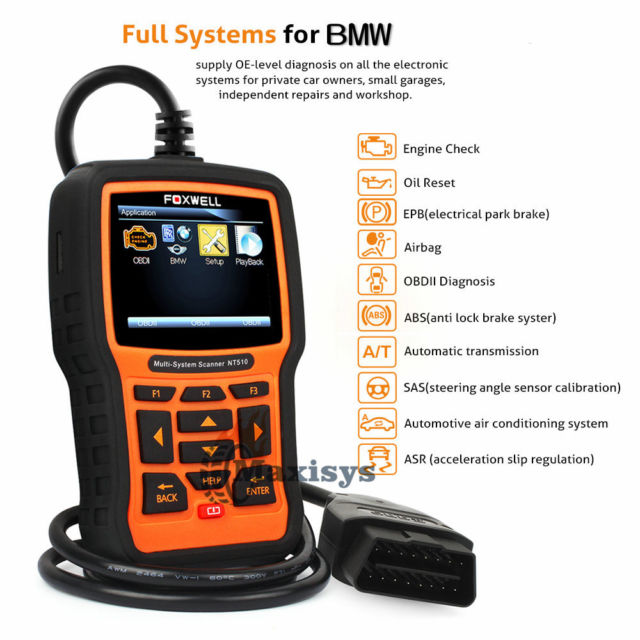

Read and clear diagnostic trouble codes from numerous vehicle systems - ABS, Airbag, Engine, Transmission, Instrument cluster etc. Component Testing, Read Vehicle and Ecu Information, DataStream Graph Display, view freeze frame data, read live data stream info. Fault-Tracing for malfunction indicator lights, includes check engine, ABS, SRS airbag, etc.

NT510 Special Functions

- Clutch Adaptation - Transmission Adaptation- EGR Adaptation- Fuel Injector Adjustment- Fuel Injector Equalisation- Idle Speed Adjustment- Bleed Vanos- Test Vanos- Valvetronic Adaptation- Glow Plug Heater Test- Fuel System Bleed- Battery Registration- DPF Replacement- DPF Request Regeneration- Oil Service Reset- Disable / Enable Key- CAS Reset- Delete Transport Mode- CBS Correction- Steering Angle Sensor Adjustment- Longitudinal Acceleration Sensor Adjustment- DSC Sensor Calibration- DSC Unit Calibration- Ride Height / Level Adjustment

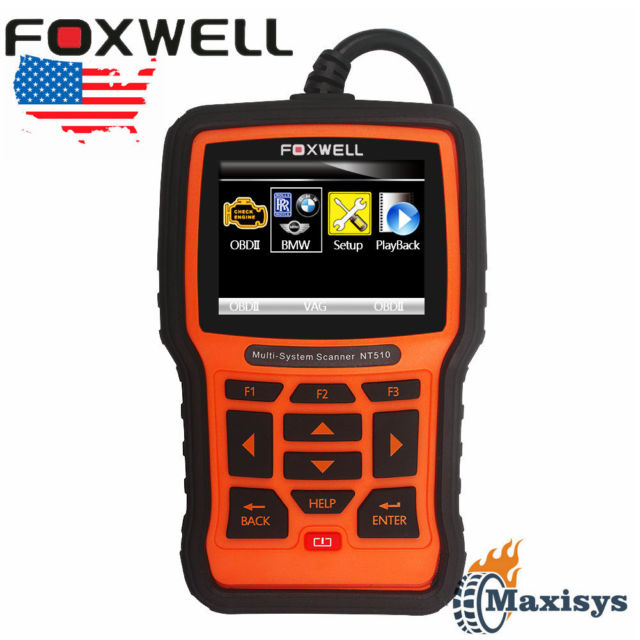

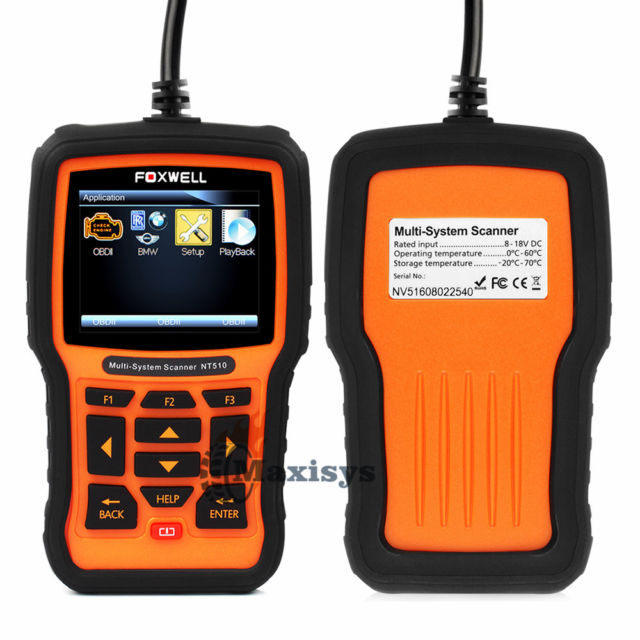

Foxwell NT510 Multi-System Scanner specifications:

Display: Backlit,2.8”TFT color screen

Operating Temperature: 0 to 60°C (32 to 140°F)

Storage Temperature: -20 to 70°C (-4 to 158°F)

External Power: 8 to 18 V provided via vehicle

Dimensions: 200*100*38MM(L*W*H)

Storage Temperature:-20 to 70°C (-4 to 158°F)

Dimensions : 145*94*32MM

Color Box: 220*85*165MM

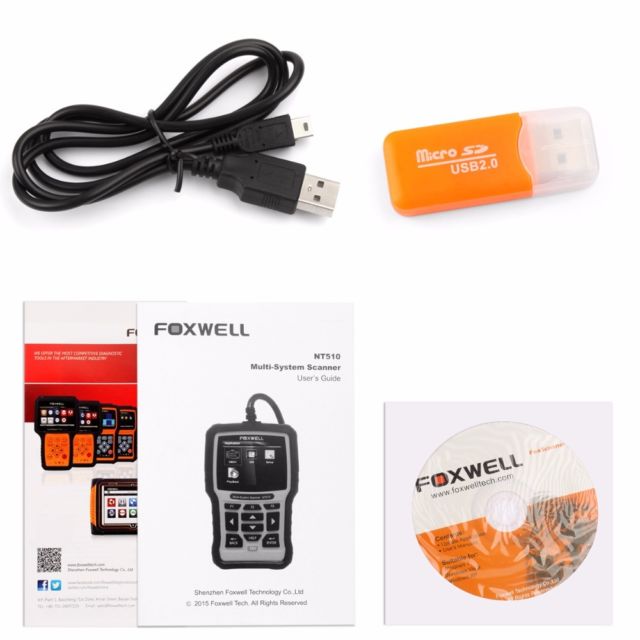

Foxwell NT510 Multi-System Scanner Package :

NT510 Multi-System Scan Tool

User’s Guide

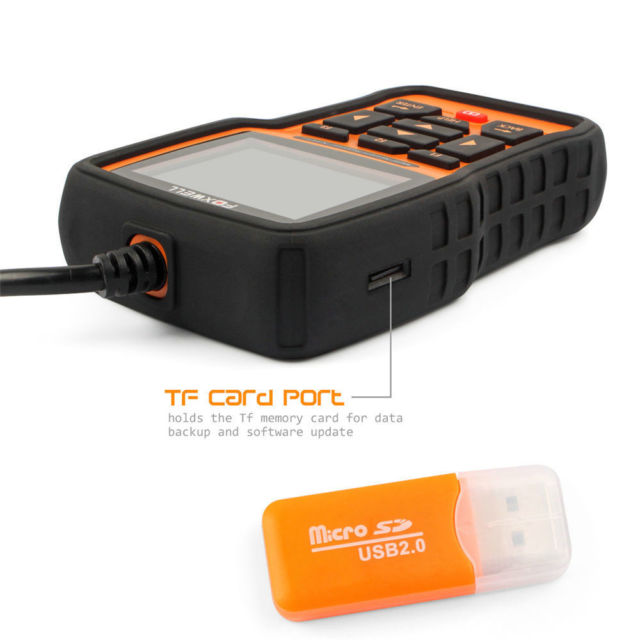

Memory Card

USB Cable

CD Software

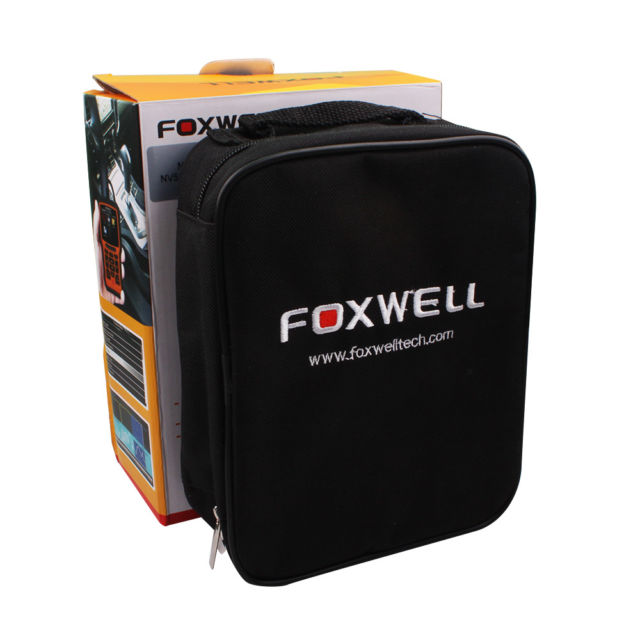

Nylon Carry Pouch
