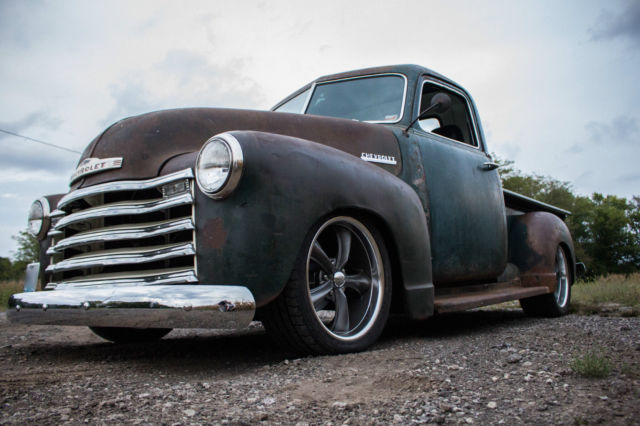

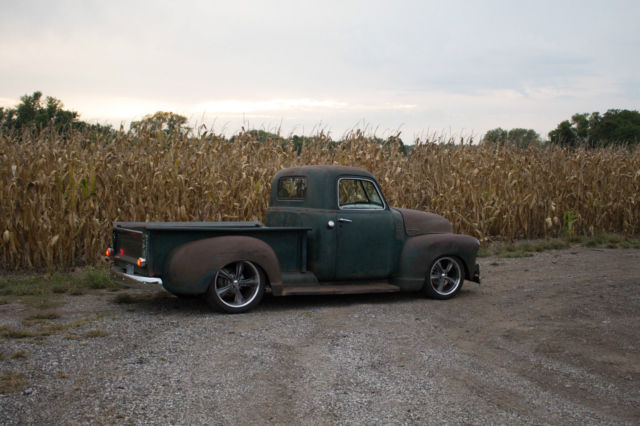

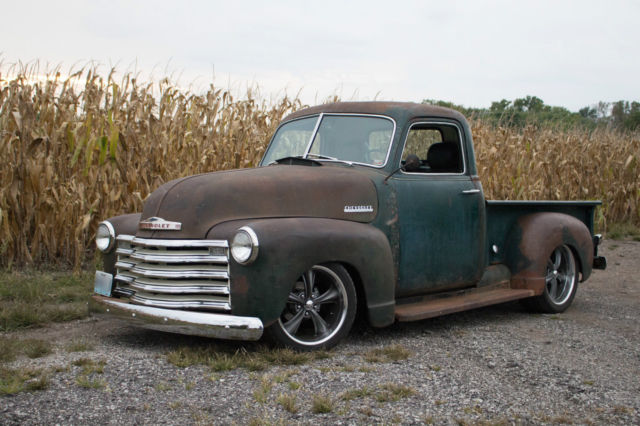

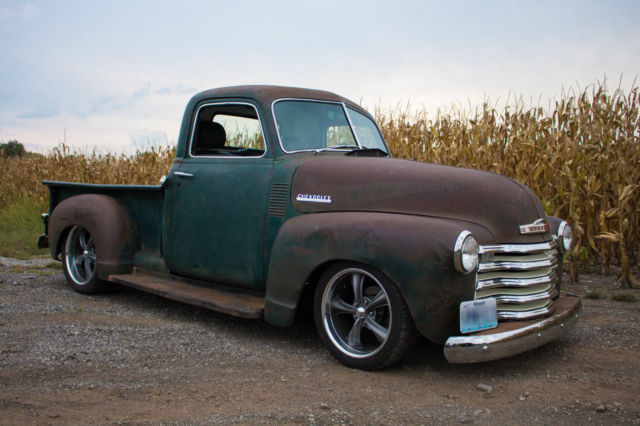

1952 CHEVROLET TRUCK LS1 RESTO MOD

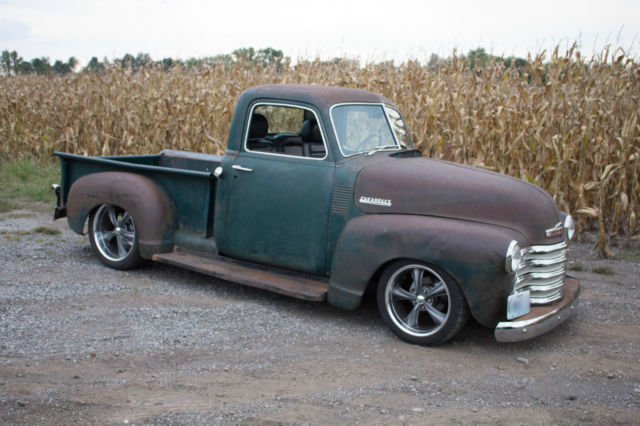

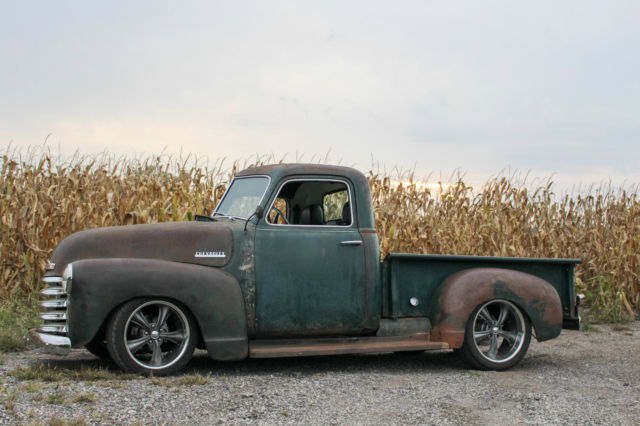

1952 CHEVROLET PICKUP RESTO-MOD

ALL ALUMINUM LS1 & 4L60E TRANSMISSION. THIS TRUCK WAS BUILT OVER THE COURSE OF A YEAR USING TOP OF THE LINE PARTS.THIS IS A HIGH QUALITY BUILD! I HAVE LOGGED AROUND 1200 MILES SO FAR SINCE COMPLETION AND ITS AVERAGING BETWEEN 20-23 MPG HWY. YOU CAN DRIVE THIS TRUCK ANYWHERE JUST TURN THE KEY AND GO. I HAVE DRIVEN TO AND PARTICIPATED IN THE GOODGUYS CAR SHOW IN DES MOINES THIS YEAR, LONG WITH OTHER SHOWS IN AND AROUND KANSAS CITY AREA.THE TRUCKS INTERIOR IS FINISHED NICELY AND HAS BEAUTIFUL PATINA ON THE OUTSIDE. I WILL LIST IN DETAIL EVERYTHING I CAN TO GIVE YOU A GOOD IDEA OF THE AMOUNT OF TIME AND MONEY INVESTED IN THIS AWESOME PICKUP.

ENGINE:

2002 LS1 WITH 40K HAS Z06/LS6 CAMSHAFT

INTAKE INJECTORS AND THROTTLE BODY

USES ADVANCED DESIGN ENGINEERING LS1 ENGINE MOUNTS

NEW OIL PUMP, ATER PUMP, LTERNATOR, OWER STEERING PUMP RELOCATE WITH NEW BILLET BRACKET

GOODYEAR GATORBACK BELT

CORVETTE COIL COVERS

HOT ROD LS OIL PAN

SLP MASS AIRFLOW

HEADERS WITH 2.5 INCH FLOWMASTER MUFFLERS

ENGINE WAS CHASSIS DYNO TUNED BY LOCAL SHOP AND MADE 280 RWHP

BRAKES: 4 WHEEL DISC BRAKES ALL NEW INCLUDING: LINES, OSES, ALIPERS, OTORS AND PADS

HYDROBOOST SYSTEM WITH WILWOOD ADJUSTABLE PROP VALVE

TRANSMISSION: 4L60E WITH BIG EXTERNAL COOLER, EROQUIP HOSES AND FITTINGS, OKAR MIDNIGHT SERIES FLOOR SHIFTER, AKOTA DIGITAL GEAR INDICATOR

STEERING: JEEP GRAND CHEROKEE QUICK RATIO BOX 12.7:1

FUEL SYSTEM: NEW S10 20 GALLON TANK WITH LS1 CAMARO INTANK PUMP. HAS LS RETURN STYLE REGULATOR WITH AEROQUIP -6 LINES

COOLING: ALL NEW HOSES, LECTRIC FAN, HAMPION RADIATOR

REAR END: 3.73 GEARS WITH POSITRACTION

CHASSIS: LOW MILE S10 FRAME FULLY BLASTED CLEANED, AINTED AND FULLY BOXED FOR ADDED STRENGTH

WELDED IN DRIVESHAFT SAFTEY LOOP

SUSPENSION:

FRONT 2 INCH DROP SPINDLES

2 INCH DROP COIL SPRINGS AND DROP SHOCKS

REAR 4 INCH DROP SPRINGS WITH DROP SHOCKS

TRACTION BARS

FRONT AND REAR SWAYBARS

ELECTRICAL:

PAINLESS LS1 ENGINE AND CHASSIS WIRE HARNESS WITH FUSE BOX

REAR LED TAIL LIGHTS

ORIGINAL 6V HORN LS1 PAINLESS WIRE HARNESS ENGINE AND CHASSIS HEADLIGHTS ON 12V RELAY SETUP

NEW DUAL ELEMENT FRONT TURN SIGNAL BULBS

INTERIOR

NEW BLACK MOULDED CARPET

DASH PAINTED CREAM WITH BLACK TRIM

HOUNDSTOOTH CLOTH DOOR PANELS

NEW BLACK HEADLINER

GUAGES - DAKOTA DIGITAL VHX CARBON FIBER WITH RED BACK LIGHTING

CPP TILT COLUMN WITH FLAMING RIVER BILLET COLUMN HOLDER

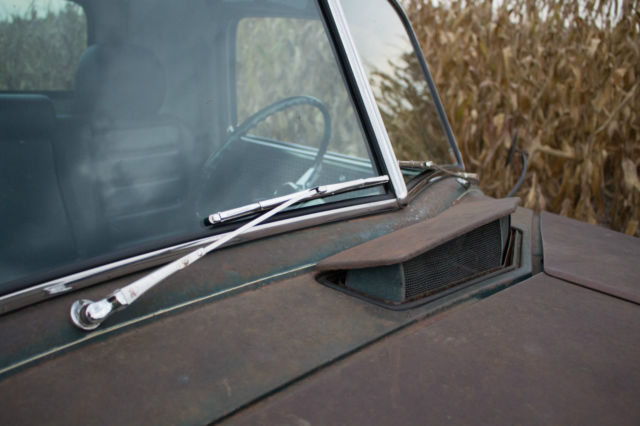

12V ELECTRIC WIPER MOTOR

LOKAR BILLET THROTTLE AND BRAKE PEDAL

64 IMPALA STEERING WHEEL AND HORN BUTTON

SEATS - HUMMER H2, LACK LEATHER SEATS WITH FOLD DOWN ARMREST AND CUP HOLDERS. SEATS FOLD UP AND DOWN FOR STORAGE

SEAT BELTS FOR THREE

HEATER IS ORIGINAL 6V DELUXE( HAS VOLTAGE REDUCER)

CAB AND DOORS:

SOLID CAB HAS ALL NEW GREEN GLASS AND RUBBER SEALS-STEELE RUBBER USA MADE

NEW METAL FLOORPANS AND KICK PANELS

NEW DRIVER SIDE CAB CORNER

DOORS ARE 1947-1950 RUST FREE WITH ONE PIECE GLASS

ALL NEW FELTS, UBBERS AND GLASS

ORIGINAL GM STAINLESS TRIM INSIDE AND OUTSIDE

ALTMAN EASY LATCHES ( BEAR CLAWS) INSTALLED ON DOORS FOR ADDED SAFETY

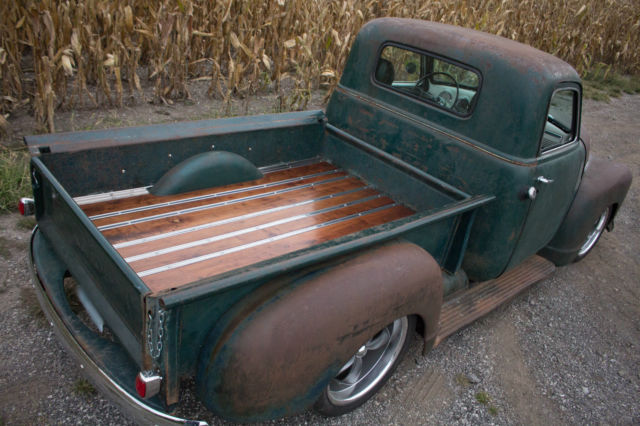

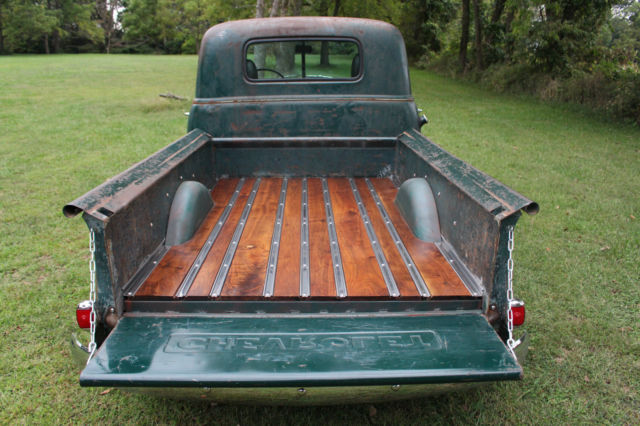

BED:

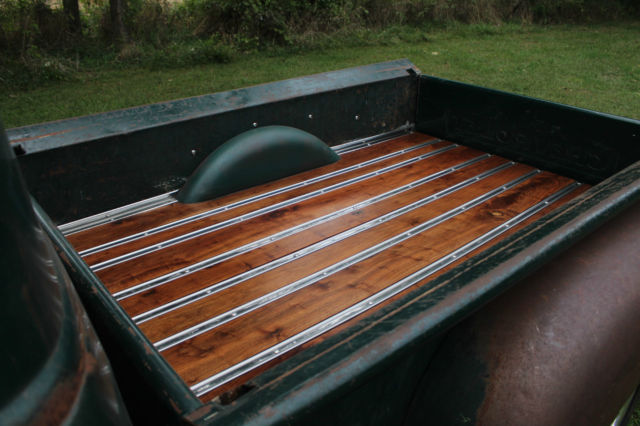

BEAUTIFULLY FINISHED BLACK WALNUT BED WOOD

STAINLESS STEEL BED STRIPS

FIBERGLASS WHEEL TUBS

ORIGINAL NOS GREEN TAILGATE! WITH NEW CHAINS

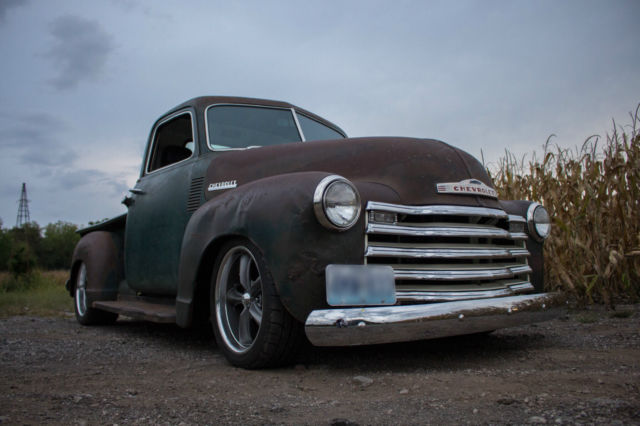

EXTERIOR:

ORIGINAL PAINT PATINA

NEW BUMPERS FRONT AND REAR

FRONT BUMPER WITH SPLASH APRON ON REAR

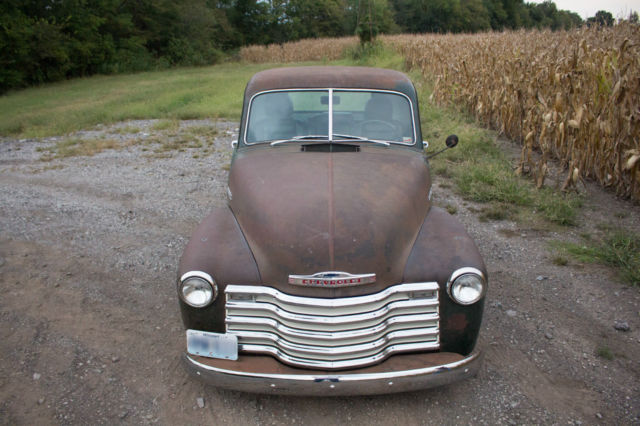

NEW REPRODUCTION GRILL

HEADLIGHT BEZELS

WHEELS:

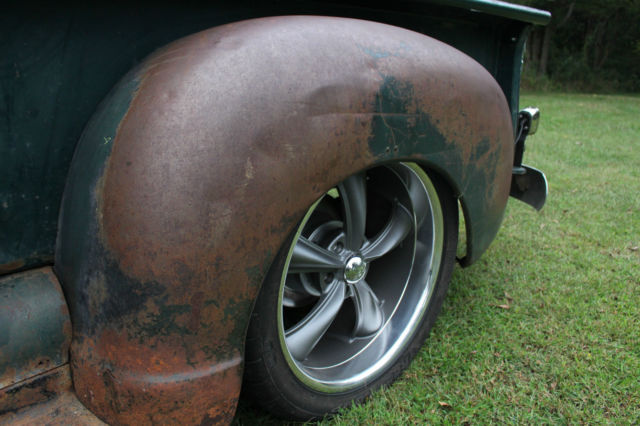

NEW BOSS 338 RIMS - FRONT 18X8, EAR 20X10

TIRES NEW FRONT 245/45/18 MICKEY THOMPSON STREET COMP

REAR NEW 305/35/20 MICKEY THOMPSON STREET COMP
